Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved

Name: Four Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved
Brand: HAOLISEN
Price: 1 USD

Brand Name : HAOLISEN

Model Number : HR-7001LB/HR-7010

Certification : IATF16949 , ISO9001

Place of Origin : Shanghai China （Mainland）

MOQ : Negotiation

Price : Negotiation

Supply Ability : 200 Tons Per Day

Delivery Time : 30-60 Days

Packaging Details : 50kg、60 kg、200kg、1000kg packaging barrels

Color : Grey

Application field : High - swimming penetration products

Performance : High throwing power

Cooperation case : GEELY AUTO

Contact Now

High throwing power (Four-box method)grey electrophoretic paint

Product Introduction :

HR-7001LB/HR-7010 Gray Cationic Epoxy Electrocoat for auto is the 8th generation electrophoretic coating researched and developed by HLS Paint (Shanghai) Co., Ltd. in cooperation with Germany HS International Chemical Industry Group. It represents modern technology of cathodic electrophoretic coating that is environment-friendly with high property and low cost. Such coating does not contain heavy metal like lead, tin, cadmium and mercury etc. It is a two-component, water-dispersed resin,meanwhile, it took in features of previous products, and can adapt galvanized steel sheet perfectly, almost can be applied to foundation coating of all metal, such as: cold and hot rolled steel sheet, galvanized steel sheet, aluminum products, zinc-aluminum alloy sheet and stainless steel sheet etc

This product features shown below:

Strong anti-corrosion properties, good salt spray resistance workpiece edge

High throwing power, internal and external uniformity



Coating fullness of good, better substrate hiding

suitable for auto body industry, such as cars, SUV and other models

The main component :

Pigment: Titanium pigment, carbon black, kaolin, antirust pigment

Additives: surface active agent, prevent shrinkage cavity agent, anti-yellowing agent.

Matrix resin: polyurethane modified epoxy resin

The main supplier :

Material name	Supplier
Polyisocyanates	Bayer
Kaolin	Neuburg
Carbon black	Cabot Corporation

Bath on site management project :

Good bath data and coating quality, from the strict parameters management and maintenance of equipment, production line according to its own reality time situation, can have different management project and specifications, recommend the construction parameters see the table below for reference:

Classification	Project	Control Data		Testing frequency
Classification	Project	New bath	Anolyte	Testing frequency
Electrophoresis tank	Ratio	1:6	--
	Ripening time	24-48	--
	Solid ( 120 ℃ /1h ,% )	18±2	--	once a day
	PH	5.8-6.2	2.0-3.5	once a day
	Conductivity ( μs/cm )	1200±400	2000±1000	once a day
	P/B	0.20-0.35		once a week
	Throwing power (Four-box method), ≥	≥70%		once a year
	Soluble(%)	Good appearance, coating survival rate≥95		once a week
	Solvent content (%)	0.8-1.5		once a week
	Liquid level Fall head (cm )	10-15		once a day
	ED voltage( V )	0-300		once a day
	Break voltage ( V )	≥350		once a week
	Bath temperature ( ℃ )	32-36		once a day
	ED time( S )	60~180		once a day
UF － 1 Tank	Solid content (%)	≤2.0		once a day
UF － 2 Tank	Solid content (%)	≤0.8		once a day
Baking furnace	Provisions furnace temperature( ℃ )	180-200		once a day
Curing conditions	Drying temperature	165 ℃ (15-20)min (With content holding time)		once a day

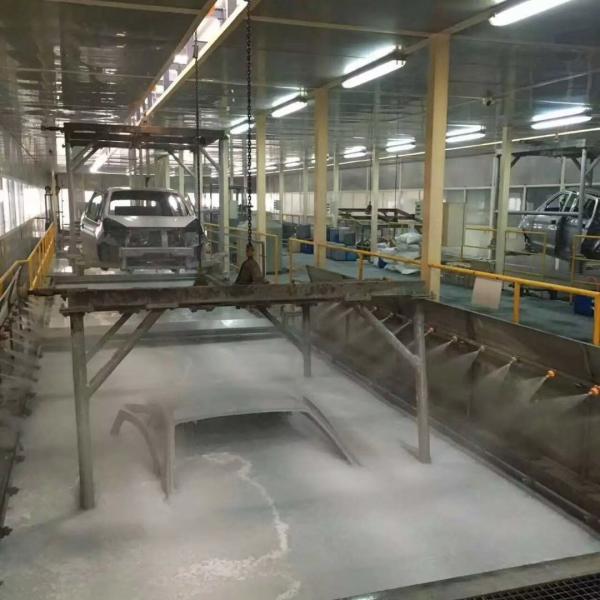

Customer production site :

Four - Box Method Grey Electrophoretic Coating High Throwing Power ISO 9001 Approved
